If You Can’t Innovate Obfuscate

What prompted this post was reading today about conjecture over Windows 9. My eyes kind of rolled back in my head at the title but I had a look anyway before they rolled back to far. Part of the article was conjecture on what MS would have to offer to get people to continue to spend gobs of cash with them. What would they have to offer? Indeed considering the state of affairs in most companies what is there to offer that buyers would VOLUNTARILY spend cash on.

I am not a code writer nor am I an expert OS tweeker. So what appears to me is what appears to the vast majority of all users I would imagine. And what appears to me is innovation stagnation. Other than this execrable ribbon bar monitor real estate hog what has MS really done for some time now? And the same for über cash cow MS Office. Tweaking around the edges it seems to me without anything really profound or new. So what you do in these cases is change the wrapper and call it new. Drum roll for the ribbon bar which I still see no reason for and which was a PITA in the CAD field to all I spoke to.So we have to relearn how to do the same things all over again for no purpose. Think about it, did this ribbon bar paradigm bring anything to you except the consumption of your time to learn new so MS could claim innovation? And WIN 8 with all those cool new hand gestures. I have had a Dell M6700 for a while now with the touch screen and quite frankly with the option to work however it pleases me I hardly ever use gestures. But then I am working with mine and not playing or showing friends how cool it is to make things zip around without a mouse. So we have the New Big Deal for Win 8, an environment designed for touch screens. The unparalleled thrill of having a 24″ smart phone and how cool is that? Now this window dressing did not bring anything of value to most users so MS had to relent and change things so you could work the way you used to. I think that is conclusive proof that the innovation ceiling has been reached doing things the same old way. Change for the sake of change again. I for one am not going to adopt Win 8. I know Win 7 is not “optimized” for touch screens but I see enough of the functionality to know this is not for me.

Now a word about tech Neanderthals. This is about the time you cutting edge super wonders chime in with how I am a foot-dragging Neanderthal who just does not appreciate new. I dare say that out of my own pocket in the last couple of years I have spent far more than most of you on innovation and buying into more productive ways of doing things both mechanically and in software. I search and look for innovations and better ways and I am an early adopter when it makes sense to do so. The very first time I saw direct editing in SE before ST1 was released was enough to convince me this was powerful in so many ways that I could not afford to do without it. It took until ST3 before what I saw became user-friendly reality but this was new for the sake of users and not new for the sake of new. It was not new window dressing meant to gull the unknowing or naive into coughing up the dough. Now I know that the idea of direct editing has been around for some time but how to make it work really well and with power and precision and wrap it up into a user-friendly package? Plus it required a certain amount of compute capabilities which were not here until recently, or so I have been told. I looked at Ironcad years before I had a look at SE ST. Ahead of its time but it just never clicked with me like the very first time I saw ST. I assume there are serious limitations with it and that is why it has never gained much market share. The idea was sure interesting though. I think Direct Editing is the last powerful thing that can be done for CAD as we know it and it was the last unused innovation arrow that will hit the bullseye for CAD. Until there is a new paradigm for how shapes and data are created and at the age of 60 I don’t expect to see it.

SW has been moribund for years now and the parent company has run into both technical and philosophical social media oriented barricades they may not be able to surmount. SW World 2014 End of Life convention is going to be full of smoke and mirrors. Don’t look at the man behind the curtain look over here. Look at our shiny new old CGM kernel stuff we have for you because we can’t do it with parasolids. So lets put an, ahem, “CAD Ribbon Bar” or “The power of 3DExperience Social Engineering Group Think Power of Cloud Compute” monikers on our stuff and call it cool to hide the fact we have run out of ideas and or talent.

Adobe has not brought about much that I can see that is remarkably better than what has been out there from them for years. Incremental improvements. New improvements of mediocre import they make available to cloud buyers only is all I see.

Autodesk has not been much of an innovator either but they have been a prolific buyer of talent and market share and they do have a plan. And it is the same plan as all the above companies have and it is the same common thread that ties them all together and brings me to my main premise for this post.

When you run out of things people will voluntarily buy, when you run out of true innovations and you can no longer sell yourself on provable new benefits and features to your buying market what is left? Why the Cloud of course. It is the last refuge of those who see that their existing customers could do quite well with permanent licenses and not send you another dime for years and years because what they already have bought does everything they need. The closest thing to a new way out there in CAD right now is SE. It is not coincidence that they are the only major CAD company that is not pushing you into the cloud. They are going to draw customers from the existing pretty much static sized CAD customer market from their competitors because they are the only ones doing really good stuff right now.

Autodesk is my favorite set of bald-faced liars. They stand there and look you in the eye and babble about unlimited compute power when you are using cad and cam programs that have core limits. And yes they do on the cloud too so you just go ahead and slurp that Kool-Aid these guys serve up. Throw in all the connectivity problems and the additional layers of software and software problems that they are going to heap on this and add in no ability to guarantee security and just where is the compelling reason we all should voluntarily buy into this junk?

So scratch the voluntary cash transfers and move on to pay to play. THIS is the new innovation which of course accrues benefits to those who created it and not buyers and it is the last resort of companies that fear a level competitive playing field and who have run out of new things to sell their customers. I believe this whole cloud thing is solely about digging into your pockets. There is a reason why none of these companies have been able to present proof of concept at this time for complex cad creation on-line. Yes I know there are some things out there in controlled laboratory condition dog and pony land but I have yet to see a typical connectivity situation proved out and a concise list of all expenses from every angle that typical users are going to have to pay created. In other words no proof it works better and saves you time and money. Remember, this is from the same group of people who can’t bring enough solid innovation to you to sell their stuff on its own merits. Nor is there any indication they intend to maintain loss leader costs on their programs with a guarantee of time duration for them because the sky is the limit as soon as they figure they can get away with it.

I figure that in this time of fiscal austerity sub rates are dropping for many software companies or they see them dropping in the future. Now one of the chief weapons companies have had over time is user lock-in. Traditionally this has been accomplished with proprietary ways of saving and using data that makes it hard to go elsewhere with it and fully use it. And the expense of new programs and training add to this. Today this is not enough security and thus the creation of a chattel instead of a customer market. Or so they hope. Make your customers work under the above conditions and then add to that the forced archival of their intellectual property and then also make them pay to use it forever and withhold access to their data if they do not pay. The destruction of permanent seats will be a key part of this if these guys can get away with it. There is nothing benign here and it is all about heaping on costs to a captive market in ways that will guarantee and grow profits for all involved except YOU the customer. It is why none of these guys layout with proof the benefits to you. What true proof can liars bring to the table anyway? Remember the fraud of unlimited data forever for iPhones utilized as incentive to get people there? Remember what happened to costs when a certain critical market size was reached?

So remember the rules of engagement for the CPA MBA attitude of corporations that figure earning your business is too hard. If you can’t innovate obfuscate. Tune in to the latest episode of this new way as the MIRV Bernard Charles straps his iPhone and iPad on and launches for San Diego. Or check in to the latest words of feudal overlord wisdom from Carl Bass as he tells you what you are going to do instead of selling you on what you should do or want to do.

Solid Edge Direct Editing, Dogbone Die Assembly + User Community Comments

Here is a part that slipped through the cracks of QA which happens when everyone is in a hurry. This was a panic order and after delivery my customer made mention of a little “ridge” on the inside of the cavities. He said it was not problem and it worked fine so we left it there. Time passes and I decided to have a look at it last week and see what he was talking about. There was more than one problem and in the following video I will show how easy it is to fix these problems in Solid Edge.

Now there are a couple of things I would like to point out here. Synchronous editing in SE is not at all like direct editing or “move face” in SolidWorks. Throughout the edits I will do in SE there are not any additions to the Pathfinder or “history tree”. When changing existing features the part complexity does not change. Also the file sizes change very little and they are not cumulative adding steps with every alteration. In addition even though features may be consumed driving sketches are not and these can be reused at any time. Of course with imported parts this is not possible and if you are worried about this I would advise you to make some sketches of features before you delete them. Once you save you can’t go back. Another option and the one I prefer best is to just save a renamed copy for use if need be.

I don’t know how “move face” would work with SolidWorks in assemblies and I have not found a video on-line that would show me. I am VERY interested if anyone knows of such a video as I would like to do a comparison between SE and SW. Please send me a link if you have one. Now in order for there to be a useful comparison the link must show the history tree in SW to allow for a direct comparison of file size and complexities.

Here are two screen captures reflecting file sizes from before and after the edits in SE. Please note the file sizes and how little change there is.
dogbone first

dogbone last

And here is the video.

I would like a word with all the Solid Edge users that may see this. Each and every one of you have something of value to contribute to the community in some way. When I post videos on how I do things I do not say it is the best way, nor the only way, it is just the way I do it. Part of my purpose in posting is to generate a community of INVOLVED people with SE. If you have a better way or a different way why don’t you contribute what you know? I am willing to post here both worthwhile comments and videos with accreditation to contributors. In addition there is an official gathering site
http://community.plm.automation.siemens.com/t5/Solid-Edge-Community-Blog/bg-p/solid-edge-news
where you can contribute and I know Matt is looking for volunteers who are willing to share their expertise. Become a FAMOUS WORLD RENOWNED Power Contributor. 😉 I even created this wonderful moniker which will accrue much prestige upon you so how can you lose? Just do it.

Now if I were Siemens I think I would be providing a little incentive here for contributors. Perhaps free attendance and transportation to SEU 2014 for the best user contributor of the year. Another worthwhile incentive might be a free years maintenance as prizes for notable contributors. Or a gift card of equivalent value for contributing employees of a company where a years free maintenance would not mean much. I bet you creative marketing types can figure some things out but don’t be tightwads. At the last user group meeting in Huntsville Saratech contributed a graphics card as a door prize just for attending. Of how much more worth is an individual who is willing to take his time to share his knowledge and show the world how users deal with CAD creation and editing? Perhaps it is time for Siemens and SE to step up to the plate and let users KNOW they value contributions to the establishment of a vibrant users community. Is there really any reason why this should not be so except that Siemens has not spent the time nor created inducements? I want to make it clear I am not trying to get these things for myself. I chose years ago to do this because I believe in the product and in the Value of community. But I know it is a rare individual who will make this type of decision based upon a goal that does not materially and directly compensate them for their time or effort. So I am asking for two things here. That any individual that feels they have productive methods or tips and tricks to consider showing all of us how you do it. And that Siemens start motivating those who would not otherwise consider contributing that they VALUE contributors. I mean you Siemens guys do don’t you? Quit being cheapskates and get on the ball.

Dassault SolidWorks Management is CrAzy, ARE YOU?

First off this post is based upon one from Desktop Engineering. Secondly Novedge has listed the Dassault icon at my post and this was done by them not me. I want NOTHING to do with these guys.

http://www.deskeng.com/virtual_desktop/?p=7856&utm_source=rss&utm_medium=rss&utm_campaign=dassault-systemes-3d-experience-forum-2013-taking-the-cloud-back-to-the-enterprise-not-the-other-way-around

Therein is quoted verbatim comments from Bernard Charles who probably has a better idea of exactly where Dassault intends to go in the future than those below him. In spite of all the assurances Dassault and SW underlings and their bloggers give about how nothing will change with the beloved SW the truth of it all IS out there. And you SW users have some very serious things to prepare for.

Without further verbiage let us read what the 3D guy has to say.

“Charles recalled, “Two years ago, we asked ourselves where we should be in 2021. Every ten years we try to reformulate where we want to be and why we want to be there, and what do we want for. This is about looking at the world in a different way, a different perspective, looking at it from the future.”

He concluded today’s economy is driven not by products but by experiences: “Welcome to the world of experiences — 3DEXPERIENCE,” he said. A critical component of the 3DEXPERIENCE would be the web and the cloud. “We will drive everything we do from an architecture that complies with the internet, with the cloud,” he reasoned.

In January, when Dassault launches V6-based products, they’ll be cloud-powered products. During his lunch meeting with the press, he further clarified that “[The new solutions] will be on Dassault’s cloud, but augmented with Amazon elasticity in the back-end.” In other words, if more computing capacity is necessary, Dassault will tap into Amazon cloud to deliver scalability.

Charles didn’t get into the details about how the change might affect licensing, but he suggests no hiccups should be expected. “We already have lots of customers in rental mode on DS software. We never left that model. That’s what makes up 70% of our revenues today — recurring revenues,” he said.

Charles sees the app-driven, cloud-hosted setup as the foundation for the new crop of engineers who grow up in the World of Warcraft and iPhone app store. “Everything we have today are becoming a collection of applications,” he declared. Consequently, he envisioned that purchasing software — Dassault’s solutions included — should be “like going on the app store and provisioning apps.”

Now let me say this about the confidence they have in their own PR drivel and propaganda. Sorry if this offends you but what pretty words do you want me to put on deliberate deception? I am going to let you make up your own mind here as to the veracity of claims by a company that will not guarantee your IP security online nor will they indemnify you for damages done to you by being forced there in order to use Dassault products. Can you see any wiggle room here to say with confidence that they are not going to force you to the cloud as a condition for using their products based on the philosophy Bernard espouses here?

Look at what they are using in part to justify this. These same kids who disgust you because they expect to be allowed to use half the day you pay them to produce results instead spend it with social media things at work. I have listened to the utter garbage that comes from HR people about how new hires fresh from college expect as a condition of employment that they have this “personal” time on your dime. And now add in to this Warcraft and iPhone apps and we can insert gamification of CAD and whole group of people who have been trained to expect to have a closed ecosystem of apps and monthly fees along with the product based upon useage. And that IS what an iPhone is since it is based on charges generated by how much data you use online.

Why exactly would you want to hire an employee who acts this way and further why in the world would you continue to plan on using software products from a company that has contempt for the ideas of IP security and productivity? Do any of you really think there is validity in the idea of cloudies designing things en mass kumbayah and coming up with something in an efficient and cost-effective manner in this brave new world vision? I see chaos and your products being produced by those who stole your IP. Look, even in our own country we have the NSA riffling through everything you have online. Combine this with a proven corrupt administration whose only rival in US history is Tammany Hall equipped with all that lovely NSA power and you honestly think Dassault forcing you to the cloud won’t be taken advantage of by criminals inside and outside of this administration? And then we have the benevolent Chinese to consider too. These days I am not sure which has more malice forethought but suffice it to say that there is no security online possible for you at this time.

Deep inside of the Dassault building lurks a legal department that puts that wonderful disclaimer of liability language in all Dassault TOS and EULA’s because they are not quite so quick to lie to you about things that would cost them their company if they guaranteed their promises as are the executives of the company who just want you as chattel and hope you do not read the fine print.

Think Adobe here where their desire to push everyone away from permanent seats and into subscription models whereby Adobe would increase their income through things like selling you online storage at multiples of cost over what you could do for yourself with your own PC. Data caps and online fees from your ISP never seems to be mentioned either by these cloud clowns. Think Adobe with 2+ meeeeellion hacked accounts recently on their “secure” system and think your IP dribbled out the same way with your CAD program.

I have covered the numerous liabilities of using the cloud for ANYTHING you value when it come to your IP. If you think I am wrong then fine, you go there. But before you do and before you let Dassault talk you into how wonderful their new world of 3DExperience is going to be for you why don’t you see just what they are willing to guarantee for you there and just how robust is their indemnification language to cover any damages you may suffer there?

I read all this junk and I think about that modern marvel the iPhone. I remember when it first came out and the unlimited data plans that went with it. First you get people to buy in even if you have to subsidize it and then when you have a large enough “captive” audience you stick the screws to them and if they want to continue using your product they have to agree to this. Now where you go with it can be tracked down to individual rooms in buildings and they are getting ready to have targeted ads in shopping malls based on where you are in the store and your sex and your likes and dislikes and the offers will be ringing you up on your dime as they try to sell you over your wonderful iPhone. On your AHEM secure iPhone over the secure internet which does not share anything you don’t want shared.

Anyone care to tell me where all those unlimited plans are now? Any of you believe that with Dassault or Autodesk cloud stuff it will be different? I have some Brooklyn Bridge shares for sale would you like to buy some?

Autodesk to buy Delcam?

OK folks get ready for the next huge round of shake outs in the CAD CAM market. http://www.channelregister.co.uk/2013/11/07/autodesk_delcam_acquisition/

I think that Autodesk is very smart about their plans to aquire pieces of the complete manufacturing puzzle. First HSMWorks, a purchase no one saw coming and one that shook up the CAM world. Now to Autodesks credit they have bent over backwards to satisfy their new-found customers and alleviate their fears. A friend of mine had a seat he used in his shop and the deal he finally ended up with was three years of HSM maintenance free subscription to cover the cost of now having to buy a full seat of SW. And of course Autodesk is busy porting this to Inventor with HSM Express the two d version there for free available right now for these guys. Obviously they intend to migrate users to Inventor over time would certainly be my conjecture.

So now we probably will have Delcam as a part of Autodesk. The same Autodesk whose Carl Bass has made no bones about having to work on the cloud for their stuff in time. You know what? If Autodesk buys up enough stuff and they can conspire with people like Dassault to force people to go where they want many of us will end up on the cloud as a condition required by the use of software we can find no substitute for. If you use Powermill and SolidWorks could you afford to jettison both the considerable cost to own this stuff and then legacy file problems to boot? I think most will in all likelihood choose to subject themselves to being subscription hostages because in these lingering economic problems that have no end in sight who can afford to replace it all. I think it is with malign intent that these pieces of the puzzle are being assembled and put in place to make subscription chattel camps out of huge swathes of users in order to make more and predictable cash flows for companies like Dassault and Autodesk.

My friend swears that at the HSMWorks convention in Florida Bass told them all they had nothing to worry about with the cloud. To their credit I think they handled my friend far better than I expect Dassault or Siemens would have handled him. Siemens is so tight-fisted with promotions for the new CAMWorks for Solid Edge for instance that even though introducing a new product they have never really had a significant inducement to buy other than it is integrated with SE. The way they have acted with CW4SE I expect my buddy would have been told to cough up the dough or go. Contrast this to Autodesks serious financial commitments to existing HSMWorks SW users like the one made to my friend. But I also see Bass’s comments about going to the cloud and he has yet to make a unequvochal statement and guarantee to everyone in writing that this will never happen. As far as I am concerned on this topic he is talking out of both sides of his mouth until they can assemble a large enough and diversified enough purchased user base that there can be no escape for most. Welcome to the brave new world of rising uncontrollable expenses as a cost of doing business. And of course will this eliminate permanent seats and result in data hostages just to continue to do business? I don’t particularly trust either Dassault or Autodesk in this area and figure that they would do the same stuff Adobe has done to their users in a heart beat and as long as they get their money your data security is secondary.

This is the true power of permanent seats of software and any of you who move away from this model sow the seeds of your own destruction in many ways including the right to reserve to yourself only your own intellectual property. Read the fine print with the Adobe cloud stuff and see for yourself what they think of your intellectual property and insert Dassault and Autodesk in these sames types of EULAS if they can make this work.

So where are we Solid Edge and Siemens? So far of the big CAD CAM companies Siemens stands out as the only company that has publicly made the commitment that they will never force you to the cloud. They make stuff that works there but they will not force you there. Bass and Bernard and Sicot talk about programs based on forced cloud usage where to use something you have to go online. They say these things and I have quoted this stuff here before. You don’t believe me go research for yourself what the respective leaders of these companies are saying. Grindstaff of Siemens is the only one of these guys who says your choices and your autonomy will be preserved.

The big question for me here as a more than satisfied Solid Edge user is what is Siemens going to do to protect my interests here? CAM is essential as a part of a complete manufacturing ecosystem. CAD exists only to produce a method of communicating to the guys who make stuff and allowing their parts to speak to their CNC equipment or have prints on the shop floor. But without a complete manufacturing solution life is more difficult. NX IS NOT the answer for SE users and at this time only CAMWorks is. If they ever get on the ball, and finish this up and then do the right things to promote it both with incentives and publicity.

So far the incentives and the publicity have been really rotten for CW4SE and I bet sales are not all that good and it is a purely self inflicted wound. There are others who are waiting for it to be finished and just as good as CW4SW which is what we were promised it would be. And why is it that this has not happened and Geometric has no updates or comments to make for SE users?

When there are no answers and deadlines and missed and no one says squat about anything conjecture begins. A friend of mine and I were trying to figure this all out and wondered if perhaps things were at a screeching halt because Dassault was considering buying up Geometric? I think Dassault does take SE seriously as a competitor for SW and after watching the uproar about HSMWorks would they take a preemptive measure and make sure CW4SW stays in their hands? It would be pretty smart to wreck CW4SE before it has a chance to take off since SW is falling farther and farther behind the direct editing productivities of Solid Edge. The new territorial boundaries are being drawn and there are only a limited number of entities that can be absorbed and the rush is on to lock this stuff up. Siemens is really anal about meetings to decide to have a meeting where it is determined to have a meeting to decide on what they will discuss in that meeting but only after the meetings to determine a date subject to extenuating circumstances which may require more meetings. I don’t know how they get anything done. But right now they had better have a meeting that makes a decision on how they are going to combat these acquisition threats. Delcam was considered to be too big to be bought out and so was Geometric. After HSMWorks was stolen from SW Siemens was very aware of the risk of the same happening to them with Geometric and the lawyer arguing went on for a long time.

As I see it there are two things here to consider for SE and Geometric. Geometric apparently does not have the desire or talent to finish up CW4SE in a timely fashion and their public face for SE users is non-existent. So they first off need to be kicked in the butt to make things right. That is a given but even more importantly perhaps they should be bought out by SE/Siemens before they are gone to a competitor. I really hope the stipulation was made to Geometric that insofar as CAMWorks goes the entire CAMWorks suite would have to be offered to Siemens first as a condition of sale of the program or the company itself to any entity. I am sure there are better things they could find to do with the money but if they are going to step up into the big boy league of complete manufacturing from A to Z and compete head to head against arch rival SW they HAVE to do this or forever be an also ran. Who knows, at this rate even though Inventor stinks compared to SW and SE it still get things done and if they make the right packages available to people with the pieces they are assembling many will hold their noses and use Inventor anyway just to get the integration. If they would just stop that obsession with the cloud.

I don’t know about you other users out there but I hate uncertainty and I really hate uncertainty when it is my dollars at stake and in the hands of those whose response is “well just spend a bunch more and shut up about it all”. I am not happy that I have not been able to afford CW4SE by now but in light of all that is going on with buyouts and Geometric dragging their feet on their CW4SE commitments perhaps it has been to my benefit here. I want Siemens and SE to understand something here. I write about SE because I really like it and I truly believe it is the best MCAD program out there for what I do. But I hate that SE has been incomplete as a manufacturing solution. And now when I am considering spending money in short supply for CAM it is to a product whose future owership I am not certain of rather than buying a CAM product that belongs to Siemens and is not going anywhere. THAT is what would make SE complete in my eyes. The capability to buy integrated products that are not subject to Autodesk torpedoes.

I am getting to the point where I look forward to the day when I decide that I never need to buy another program or years maintenance again to see out the rest of my working career and if all these trends continue it may be sooner than later.

Industrial Psycholgy 101, Camworks for Solid Edge-SolidWorks and Solid Edge

I am going to try to make a point here to these two mentioned software authors but in truth it applies to every program out there in some way. Why are simple things left not done because, well because I don’t know. It baffles me why the authors deliberately leave these loose edges for every user to have to deal with.

Here is an example from SE. Now this is being worked on finally but there is a principle here I am going to touch on. Why oh why have users been told from day one until now that if you don’t like the thread data here is where the text file is and you go edit it? We who write these programs and do not have to make things with these programs see no reason for you to get accurate manufacturing data from us on threads when after all you can do it yourselves appears to be the principle here to users. After 20 versions of SE and six versions of SE ST the data for threaded holes is finally right but threaded shafts are not. Now let me explain something here. It is not that we users can’t change this on our own. It is that we resent this having to be done at all. So the answer for many of us, and you may not understand this at all but none the less it is true, is to get mad for years over this and post notes on our drawings that can and do get messed up. Our answer is not to go in there and do your job for you but rather to resent this every time we send money in or work on an effected file. Looking into my own mind and assuming this is a typical response my choice, irrational to you guys or not, is to get mad. We EXPECT these simple basic things to be right for the money we pay. We do NOT expect to be told that our time has so little value in your eyes that each and every user has to make these edits on our own. How about we have hired you guys to do this right and you need to put your intern on this. Here is the equation to keep in mind. One guy x hours is what we pay for and not 50,000+ users x hours. Kinda get my drift here and see why users resent this stuff? This one has popped up at the BBS periodically so I know others feel this way.

Here is one from CAMWorks for SE and I understand SW. It is the pitiful tool library that was put in the program from day one and NEVER updated. The difference here though is that users are forced into correcting this because the program will not work right without you doing do. So once again lets look at the human equation of one guy x hours is what we pay for and not ???,????+ users x hours. When I finally get my seat I will have to add one by one every tool I use in there. There is not one 135% split point bit in there. There is not one type of coated carbide endmill in there. There is not one three flute endmill in there. There is not one five flute endmill in there until you get to .75″ and above. So here we have Volumill as an important part of CW4SE and SW and there is not one thing in the TDB that reflects that this program is even there. The answer is, that is the lazy programmer and software authors answer is, well we know you will need to set this up to reflect your unique and individual needs. So here I am, a user and the first thing I am expected to do is create a tool database to work from. We are each and every one of us expected to manually addin everything we use. You can’t import a data base here by the way is my understanding so it is one by one. Now I get that proffered cop-out that well we can’t tailor make this for everyone and everything. I understand evasion of responsibility to give your customer a better out of the box experience because you are to lazy or cheap to do so. How ever, you do understand someone will have to do it and who does it as long as it is not YOU is fine with YOU. This is something that will offend every looker or buyer. No it is not a show stopper but it is a major days long irritant that we users all will have to suffer under. A three axis mill package with lathe and Volumill is north of $15,000.00. Buyers expect these things to be taken care of up front and if you think it does not aggravate us, think again. It is expected that there should be a decent and complete tool library. See Surfcam’s tool library for a great example. Gosh looky you mean it can be done? Yup it sure can Ethel. We can fine tune things from there. The whole idea of feature recognition with CW is powerful. And it would be far more immediately powerful with a real tool library. I bet your demo guys would sell more to if this was in there by the way. Instead you say here it is and it is great and after a couple of days of work your tools will be ready to be a part of this. And don’t ask me what I think of the procedure to add these tools in by unless you want an earful.

Part and parcel of customer satisfaction is the implementation of practical databases and libraries that reflect what we all have to deal with. When a customer starts to dig into the program these things are expected as a part of the purchase. Useable information to be incorporated into whatever we are doing with minimal input from our ends. These things are cumulative and if there are enough of these irritants it results in alienating potential customers and in aggregate perhaps eventually running off existing customers when they find a program that does care about these things and does the rest to.

OK you industrial psychologists, you want to make more sales and happier customers don’t look exclusively to tabs and layouts on tool bars or ribbon bars. Don’t limit yourselves to vernacular and syntax. Find out some of these simple but egregious things in our eyes and measure user satisfaction incorporating this to. A powerful sales tool, at least it would be to me if I was looking, would be how complete the implementation of your program is to immediately produce trouble and hitch free workdays. In this day of the internet you can run but you can’t hide this stuff from people any more.

SolidWorks, Direct editing and Data Hostages

Over the last week I have had an opportunity to see exactly what SW has when they talk about direct editing. Really the claims made for direct editing capabilities have been there for some time but I never thought to go and hunt down specific examples that included screen captures of actual parts being worked on. Silly is it not? I know the power of the web to find information but sometimes it seems I get a mental block about using tools right at hand to verify comments, claims and opinions. This led me this morning to go further than just looking for videos of actual parts being edited and into the reality of SW’s failure to have more than the most crude and rudimentary form of direct editing known as move face. It appears their only answer seems to be Catia Lite. So, What do I base this on.

Bertrand Sicot, CEO of SW whose opinion and comments might be better informed than most about what is going on over there had this to say in September. This is not ancient history nor can it be misconstrued. It is their road map and you don’t have to like it. Embrace the new
http://www.engineering.com/DesignSoftware/DesignSoftwareArticles/ArticleID/6283/Solidworks-2014-shows-CAD-Evolution-not-revolution.aspx

And I quote,
“Direct Modeling

Direct modeling allows a digital connection from concept to detail design by paramaterizing the model after the initial design. While other CAD vendors have either purchased or developed their own direct modelers, Solidworks has remained the lone holdout.

Last January the company announced that it was working on a product called “Mechanical Conceptual” that would support concept design. Solidworks now has 10 customers using Mechanical Conceptual and plans to make the product generally available in January 2014. According to Bertrand Sicot, when Mechanical Conceptual is released users will be able to create concept geometry and then fluidly pass that into the Solidworks detail design environment and back.”

Ha-Ha, when it is released. Originally scheduled for release about the time Sicot made this speech it has been pushed back until next year now. It appears to be following the same development path as so many other Dassault SW related attempts these last few years where if something actually even makes it out of the door it is flawed and problematical. DAVE, how can you say that about Mech-Con? (well I liked the abbreviated title an industry analyst gave this program even if you don’t 😉 ) Based upon the sterling achievements these Dassault guys have had these last few years with all the SW stuff they have tried and failed at do you honestly think things are OK with Mech-Con? Kernal translation joy I suspect. There is a reason so much of the Dassault stuff is kind of Freudian and I bet CGM really is turning out to be Concentrated Geometric Masochism in Mech-Con. Of course all this idle conjecture and these evil aspersions could be swiftly ended by Dassault actually doing something right for once. I still think Dassault may be seeing bigger dollar signs outside of pure cad creation and may be trying to figure out a way to make money out of “socializing” their users. I don’t mean the worthless Obama commie stuff but I mean it in the Google and Face Book sense of the word. It seems to be all about the cloud and 3D Experience and design by committees of hundreds over the web. No problems there Eh?

I want you readers to try a test here to ascertain the interest of Dassault giving you this tool of direct editing. Google “Solidworks Direct modeling” 681,000 hits and when you dig into some of them a bunch are talking negatively about it, as in SW users. SE has 3,150,000 hits on this topic and of course most are discussions and not demos but dig in there a bit and see the topical contrasts. And note that according to SW they have four times the subscribers. Now Google SE and SW with “direct editing”. 53,900 for Mega Number#1 SW and 1,600,000 for SE. Now try the same searches adding Video to the string and we get things like 1,660,000 for SE and 470,000 for SW. Now obviously a bunch of these are not actual videos and indeed in any of these categories I am asking you to type in the majority are not strictly what we asked for. BUT you can go through these and get an accurate picture of where these two companies stand on their opinions of the usefulness of direct editing, their commitment to bringing useful tools to users, (and yes I consider any company that does not have more than the most crude forms of direct editing is leaving the most single powerful productivity tool now out there from their paying customers) and the response from actual users where the rubber hits the road.

You need to look at a real version of direct editing before you dismiss it as the powerful tool it is. I believe with my own out-of-pocket money that you can’t beat Solid Edge and ST. I believe in it enough that I spend my own time and dime talking about it and let me assure you I don’t get one thin dime in any way from Siemens or SE. I have to pay my way at the Universities,buy my blog site and the computers I use, buy my software and if I am late like I am this year on renewal they graciously charge me interest on top of the yearly fee. (Then these same guys turn around and want me to help sell seats for them 😦 Quite frankly they make me mad sometimes but I have to remind myself that I started doing this because I wanted to and that reason is still valid.) But I think that in the community of all cad users once you get past the fanbois stuff if you are going to be an advocate you ought to at least have a good reason besides being a zealot. I talk about SE because it interests me as software and because I honestly believe it is the best value and most useful MCAD tool out there. The guy that talked me into SE ST saved me a ton of money and time over the years and maybe I can pass that on to you. I know I appreciated it. This little journey into the world of SW and move face has been an eye opener. I know I spend my own money and so do you, or your company does. I know I hate getting bad information that I will later be spending my time and money on. This is precisely why I am here with SE and Siemens. There is a proven track record of doing what they say they are going to do and bringing the single most powerful tool in the design world to you, ST. I get a chuckle out of those bemoaning old kernals when I think well yeah, some people can do new things with proven “old” technology and others can’t.

So what really is left for SW users. Three things I believe. They get to work with a design program that is quite capable but is quickly falling behind the productivity advances being made elsewhere. It is still the largest single user base with the not insignificant benefits that can bring. And finally they are data hostages whom Dassault hopes will have to stay because the perceived grief of changing will be too onerous. I see only one compelling reason here in market share and it is going to diminish. In the mean time I am bringing in your MCAD files and doing things quicker than you can with your own created data. Is there something wrong with this picture?

I believe, and so does Dassault because they tell you so if you care to listen like Sicot did in September, that you SW users are in for turmoil and forced change anyway. I think it is patronizing corporate-speak when these Dassault guys tell you your beloved SW will not change. You are soon not going to get the choice of continuing on as you have been accustomed to with your old familiar tools unless you drop maintenance and stay with a particular version. That has a price tag to and you all know this. Or you can make a rational decision to pick the change you are going to be inevitably forced into. You don’t have to like it but you WILL have to deal with it. I think of all the programs out there switching to SE is more painless than anything else and I am betting far less painfull than the migration from SW to Catia Lite will be. Change brought to you by Parisians that have forgotten what made SW great or change brought to you by SE with stable planning with attention to what users want with far more productivity.

Cookie Dough Die Round to Ellipse, Solid Edge for Manufacturing

Here we have a part that failed to produce like the customer wanted. Using a similar die for testing the deposit was elliptical in shape and the deposit needed to be round as in round cookies. The solution was to redesign the die and create elliptical cavities that would yield round deposits and send the customer a screen capture and drawing for approval. So follow me as I edit this part. I have to admit that I can barely remember how clunky life was in a pure history based world and man what a difference.

Now I thought this would be a CAMWorks post too but my temp license ran out. My first time updating this file there worked and did so flawlessly updating ALL the changed geometry and tool paths with a couple of mouse clicks. Sad to say as I redid this video it never worked again so blame the license gremlins. It was nice to sit here tonight though and edit this part with ST and then step over to CW4SE and do an update and it all went so quickly.

You know what? Time IS money and I can’t fathom wanting to work any other way ever again.

Join with me as I edit this part.

The Parable of “O’Charleys” Restaurants and Solid Edge

O’Charleys is a restaurant chain based out of Nashville TN that I used to do a lot of work for. In years gone by they had franchise holders and one of them owned a store on University Drive in Huntsville not far from SE’s headquarters. And it is this store where this story began.

My wife had been a server at O’C’s for a while and I had worked on probably over a hundred of their stores by then. We were very familiar with the standards that were supposed  to be in place for service and hygiene. At that time they had the best Prime Rib you could buy and so we decided to go to this store for a meal.

Well we get in there and sit and wait. For quite a long time actually before the waitress could be bothered to approach us. In the mean time I go to the restroom and come back out with a bit of disgust as I tell my wife what a foul smelly cheap bar place it was. Still no yeast rolls and these were supposed to be quickly presented according to corporate policy. None was ready it seems and so the waitress could not bring them out until after we had our salads. Big no-no and the server attitude was lackadaisical at best as she was more interested in talking to friends than customers.

I came back to the Commissary operations for O’Charleys which was in Nashville and my biggest customer at that time and told some of the people there how awful the meal was. Their comments to me were “did you tell Wayne (franchise holder who also had an office there) about this? I was a little hesitant to do so but they prevailed upon me and I did so. Talked to Wayne about it and described from beginning to end what I saw and experienced there. Wayne did not have much of a response and I left his office.

A few weeks later I ran across him and asked him about the store and this is what he said. He went down there and walked in unannounced for a surprise little visit and it was every bit as bad as I said it was. He spent some days there getting things fixed up again and firing the managers that had allowed this to happen. I asked him how this situation had occured when the store was just a two-hour drive away from the offices in Nashville and easily checked on.

Wayne went on to tell me that the numbers from the store were decent and based solely upon this there was no reason for him to go there. He had six other stores  so I guess he would concentrate on the worst one only. I don’t remember asking him about this so I can only conjecture.

Some time  later I asked Wayne about that stores numbers  and he said that after his surprise visit and  ensuing cleanup and management purge there was a pronounced uptick in sales.

The moral to this story is that numbers only do not tell the complete story. Here we have Solid Edge whose numbers are decent and sales are going up in spite of how the help is presenting the “food”. They should be and could be much better is my belief.

It is not just the basic quality of the food you sell but it’s appearance and presentation too. You can have great food and spend lots of time sending out select aged prime rib from the commissary but if the people “selling” it in the store don’t do their job it will never matter how good the commissary’s beef is.

Does A Solid Edge Publicity Department Really Exist?

I have been thinking about this at great length and I conclude that in spite of what I was told about publicity and my commitment not to talk about it for a while I have to now comment. The reason for the original decision is I think still valid but there is another problem that is systemic with UGS/SE and now Siemens and it is a different one.  It is a publicity department that does not have a clue about the passing of time and what to do. 3D has asked me questions for instance about the rent SE by the month announced at SEU2013. And here we are a week after and just nothing.

Lets look at this particular problem. I believe this was one of the major vehicles being offered to entice potential full-time new customers. So here we are heading into SEU2013 and we know it exists. Karsten talks about it and speaks of it in the keynote address. So you publicity wonks, I now have a few questions for you. Why was there not a cohesive plan to promote this with details worked out and on the shelf ready to go on day one in Cincy? Why do I have to sit here two weeks later and tell people I don’t know because you either don’t know or can’t make a decision to tell the public about it? I thought the days of Bruce Boes advertising paralysis were over but by golly I find myself wanting to look behind closed doors to see if he is still here. Do you people understand that you only have one major event/product release a year and you have to utilize it to benefit from it? The buzz never burst upon the scene in my opinion because it is the same old same old long time employee total lack of vision and do it the way we have always done it because my head might hurt if I do something radical. And apparently profuse timely publicity and the free flow of information is a radical concept to these publicity people.

Here is another one. There is to be some sort of ST only version of SE that  I believe was created for two reasons at around $2,000.00 I think if I remember this right. My belief is that it was meant to be a competitor to things like SpaceClaim as a direct editing reduced function program for CAM users to use and also as a cheap way of getting the power of ST into more hands. I don’t hear anything about this and I thought this was a big deal. Evidently the PR department thought it was not as they can’t be bothered to talk much about it or provide many details about it that I have seen.

Where are the ready to go videos showing the power of ST in assemblies this year? Why were these not done well in advance of SEU2013 and posted on YouTube on 6-25-13? Now that I think about it why were there not videos on every important aspect of ST6 posted on YouTube no later than the first day of SEU2013? You knew what you had to work with six months ahead of time and I just have this vision of people standing in a room with a dart board in front of them. It has various PR categories around the bullseye and after the darts are thrown the arguments ensue and the whole process starts over again and again. I can just see it. A dart misses the board and now we have to debate if this means there was a category that should have been on there but wasn’t and nothing is ever decided or done.

I was forbidden to talk about some of the things I knew about CAMWorks because, well because someone somewhere decided that the perfect and anointed time to do so had not arrived. A totally farcical situation considering the fact that this whole integration and the company it was to be done with had been publicly announced A YEAR AGO! Do you people understand that if you talk about it and have a vendor there showing it in SEU2012 it is not secret to be hidden knowledge? Alright let me see if I can put it in terms you all might understand. When PT Barnum comes to town they make a big deal out of it and they have (shocking I know, the very thought scares me) a PARADE to entice the public to be their customers. So as I remember, you PR guys can help out here if you wish, the only mention for the next ten months about this came from a blogger that does not reach all that many people. But for months I did more to promote CAMWorks for SE than Siemens did and I just don’t get this disconnect. Is there something wrong here or am I just an idiot for thinking that if you want people to buy your product your better promote the bejeebers out of it?

Which leads me to my next topic. Where the heck is all the info, the Powerpoints and videos from SEU2013? Do you ever intend to release these? You do know the time to have done so was 6-25-13 don’t you? It should have been canned and upped on the site of choice and ready to go with links active the night before SEU started. You do want to create buzz don’t you? You do want to compel people to consider SE don’t you? Then here is a suggestion from Remedial Marketing 101. I say remedial for a reason because evidently some individuals have to be taught first that marketing has value before they are taught how to do it. Tell you what. I don’t have to sit in a room and argue with people or worry about perfect timing or whatever you guys do that stops worthwhile plans and efforts dead in its tracks. I was given a flash drive as were HUNDREDS of other attendees and it has the SEU2013 Powerpoints on it. (You know, the ones you have not released yet. But they are public and this is what bothers me so much. WHY oh WHY is this stuff not out there yet that I can find) I am going to help you guys get off the dime and give you a week to stop prevaricating. Then I will figure out how to post the whole thing to my blog.  Who do I send the bill to by the way for doing your job for you?

Heaven help me and I know JB will have a field day with this but the day Jon Banquer makes more advertising sense than what I am seeing from the PR wonks at Siemens or SE or whoever it is responsible for this mess I just cringe. Can you imagine that even he is getting this right but none of the paid advertising people are? I have to admit that I find defending inaction is not a task I am up to and so I am not going to. I guess the idea of “The Best Software You’ve Never Heard Of” has legitimacy as advertising genius to “The Best Publicity Department We Never Hear From”.

I think hands down SE in its combination with CAMWorks is the single most powerful mid range MCAD program for manufacturing out there. I believe in it enough to spend my own time promoting it and I don’t get compensated to do so. As a matter of fact it costs me some money and time out of my life I can’t replace because I do believe in it. It makes me furious to watch this neglect from those who are paid to promote SE not do so and not do so for year after year. I can’t conceive that once again we are heading down the path of anonymity and the opportunity provided for PR with SEU2013 is being squandered for reasons I don’t know and can’t begin to fathom.

Why don’t you people get off of your dead rear ends and start earning your money? I am at the point where I don’t care if people in the PR department are offended because I darned sure am offended. What do you people do with your time? What can you possibly be thinking to let this precious time go by? Dassault and Autodesk are doing everything they can to destroy their businesses and all the plans that Karsten and his team come up with for the future are just shot down by your incompetence. This is your last year to get it right. I don’t believe this hiatus of coherent planning at Autodesk or Dassault will last more than another year. When they get whipsawed by declining on-maintenance and new customers they will reconsider their ways and your free ride will be OVER. These guys know what they are doing in PR and they will eat your lunch.

The question is do you even care?

Update 7-9-13

Had a Faroarm rep here today at the shop. While talking I of course mention SE. I mention SE because he was talking about Faroarms being integrated through Dezignworks to work with Solid Works, ProE and Inventor. We continue talking and he is familiar with SpaceClaim because some of the machine shops that have Faroarms are using it with the new Spark program. He has heard of SE just a few times over the last five years.  WAY TO GO MARKETING AND PR!! I know very well there are a number of SE users in Tennessee which is this guys district but he does not and this is the result of a total failure to effectively communicate the SE message here.  I hate it when people look at me like I am delusional when I say this software they have rarely or never heard of is better than SW. I just wish I could send these people straight to the publicity/marketing departments of SE so they could see what dismal failures they have been at getting the word out.

The primary reason he had not dealt with SE is because nothing has been set up with Faro to work natively inside of SE. And of course the lack of any publicity for SE reaching him through the internet or other media.

CAMWorks For Solid Edge

Yes folks it is finally time to talk about this program and not have to hold anything back. Formally announced today CAMWorks For Solid Edge will be the first truly integrated CAM program for Solid Edge. The question has been posed many times why NX Cam Express  (NX CE) could not be ported to Solid Edge. Quite simply NX CE is design to work inside of NX and to accomplish that has to be capable of opening legacy files from way back in NX and work on them.   Solid Edge files could be imported into NX CE but they had to then be translated into a version of NX Cad to work right.  There was and is no way to take and make Solid Edge directly and truly integrated under these conditions so the search began for an integration partner.  Siemens owns it all by the way so the idea that NX did not want to port NX CE to Solid Edge because it would cost “them” profit is not valid. It was for technical reasons only.

A truly  integrated CAD and CAM program  brings efficiencies to the manufacturing world that can’t be accomplished any other way. One mouse click to get to Solid Edge and one mouse click to get back to CAMWorks For Solid Edge. Right there in the same environment and on the same “page”.  It is the only way to go if you can. I am pretty sure every reader of this post understands the power here so I am not going to dwell on this.

The criteria to be met once NX CE was ruled out was to find a company that had solid knowledge of CAM with proven products and a track record of success with integration.  Along the way it became more complicated when HSMWorks was bought out. Now it became imperative that the partner company not only be qualified but also not  be in danger of being bought out from under Siemens feet as HSMWorks was with Solid Works.  Siemens works in ten-year planning periods and they had to be sure that their partner choice was also committed to this ten-year planning period too. Not only do they want to know where they will be in ten years they want their customers to know. Stable rational management planning capabilities both in Siemens and with their customers is predicated on knowing what your tools will be so you can make plans accordingly.

There is something like fifty or so differing CAM programs I have been told and when the search began it was a little daunting for the Siemens SE integration guys who had no idea the CAM market was this populated. They were used to CAD and that market is nowhere near as fragmented. However when you start tire kicking a bunch of them fall to the side quickly for a variety of reasons.

Geometric’s CAMWorks was the final pick and became the integration partner. I have had the privilege (Such as being a beat tester is as those of you who have been there know!) of being a beta tester for CWFSE (CAMWorks for Solid Edge). Now understand that we did not have the Beta to play with until three weeks ago and I did not actually cut parts with it until Wednesday through Saturday last week. As a result it is hard for me to sit here and try to answer questions other than in generalities. I do feel qualified to do that however.

CWFSE is not a simple CAM program and there is not a simple one out there however that can do all the things CWFSE does. This is the price to pay for having a powerful program at your fingertips.  Automatic Feature Recognition like that found in CWFSE  is a very powerful tool that is in many ways the CAM equivalent to the Synchronous Tech capabilities in Solid Edge. To make it work right you have to properly set up your tool crib. Once this is done AFR is quite powerful and in many cases will automatically yield tool paths that will need little tweaking to completely cut a part. For those of us like myself who still like to work off of features I pick Individual Feature Recognition is a great tool. Plus you can get  Volumill with CWFSE and the metal removal capabilities there are nothing less than phenomenal. We were looking up recommended speeds and feeds from the Volumill Milling Advisor and were a little timid to take their word for things at first. Cutting 4142 with a .5″ five flute end mill at 1″ depth with a 7% step over at 287 IPM is not something I have done before.  I am counting dollar signs for the future as I contemplate the increased efficiencies CWFSE and Volumill will be bringing to this shop.

In any case there will be a far more about CWFSE in the near future as this new program is put through  its paces.  I am just VERY pleased to be sitting here at SEU2013 today and see the culmination of CAM integration finally happen for Solid Edge. This is extremely important to Solid Edge considering the fact that  design software has no reason to exist without a product being produced somewhere at some time from it.

Solid Edge is now a complete manufacturing environment. I prefer to think it is the best midrange MCAD/CAM  manufacturing environment out there. There is a synergism that exists here with Solid Edge’s direct editing capabilities with Synchronous Tech and the Automatic Feature Recognition when set up with CWFSE and run in conjunction with Volumill.  OK, I admit I am biased and opinionated here about this. But I have good reason to be and I don’t see anyone else out there with this power to deliver productivity to shops that actually make things. And as a big bonus feature I know where Siemens is taking us in the future and it is to better productivity tools and no cloud type junk.  Their feet are firmly planted on the same ground I have to walk on and their manufacturing considerations are the same as mine because they are using it in their own manufacturing ecosystem.  Practical solutions and planning for real problems we all encounter and I can’t ask for anything better.

Now all you guys over at the Siemens  BBS SE Misc category know what “Quiffsee” is 🙂

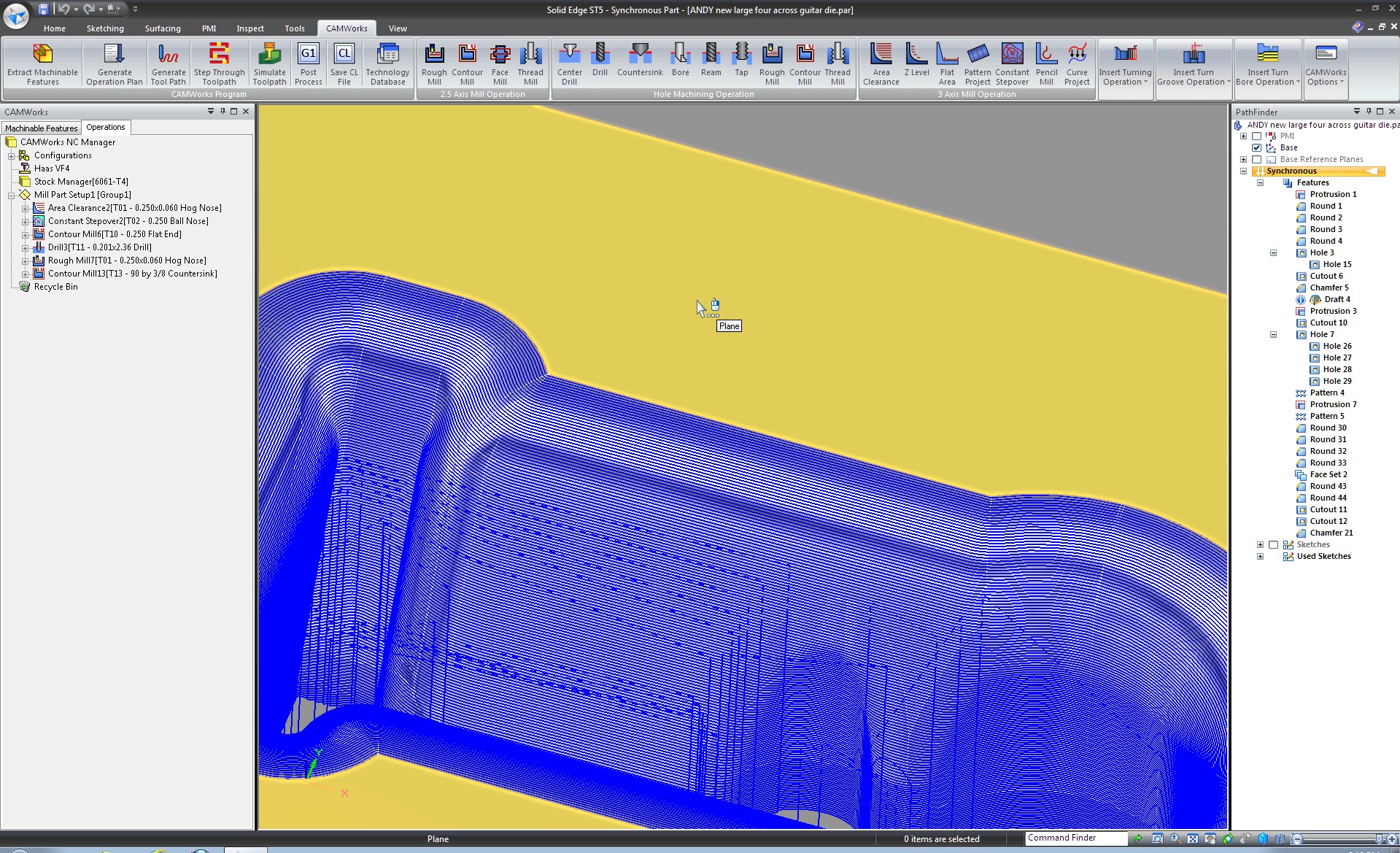

CAMWorks For Solid Edge open window
